SP-241 (1/2" Printhead)

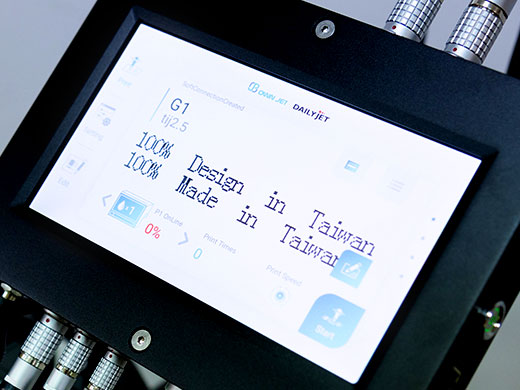

7" Touch Screen Controller With 4 Print Heads
(Supports Connecting up to 4 same or different printheads)

Sinletai thermal inkjet printer product pj241 product slider image-01

Sinletai thermal inkjet printer product pj241 product slider image-02

Sinletai thermal inkjet printer product pj241 product slider image-03

Sinletai thermal inkjet printer product pj241 product slider preview image-01

Sinletai thermal inkjet printer product pj241 product slider preview image-02

Sinletai thermal inkjet printer product pj241 product slider preview image-03

Key Feature

7" Touch Screen Controller With High-speed TIJ 2.5 Print Head for quality printing

Designed with easy usability, versatile installation and, setup, can be applied in these industries: Food, FMCG, Pharma, Cosmetics, Beverages, Breweries & Distilleries, Extrusion pipes & cables, Wood/Laminates, Electronics and Agriculture/Aquaculture.

Best Suited For

High resolution, High-Speed Applications
Touch Screen Area

7" Inch Screen
Print Quality

1/2” printhead: 300 dpi @ Print Speed up to 90m/min, 600 dpi High-Resolution Prints
1” printhead: 300 dpi @ Print Speed up to 40m/min
FUNAI printhead: 300x200 dpi @ Print Speed up to 40m/min
Print heads

Connects up to 4 printheads (1/2” printhead, 1” printhead, FUNAI printhead)
TIJ 2.5 Inks, TIJ 1-Onch Inks, FUNAI TIJ Inks

Benefits

Sleek & Compact Design

User friendly 7” touchscreen color display with WYSIWYG graphical interface
Product Design

Sleek & streamlined for easy integration with 3rd party products
User Interface

Variable database function to meet the requirements in all kinds of applications
Ink Selection

1/2” printhead: Wide selection of TIJ2.5 Aqueous, Solvents inks
1” printhead: Wide selection of TIJ 1-Onch Aqueous, Solvents inks FUNAI
printhead: Wide selection of FUNAI TIJ Aqueous, Solvents inks

Specification

Sinletai Thermal Inkjet Printer Product Introduction Video

RESOLUTION	1/2” printhead: Max 600 dpi 1” printhead: Max 300 dpi FUNAI printhead: Max 300 dpi
PRINT SPEED	1/2” printer: Max 220m/min @ 300x100dpi 1” printhead: Max 40m/min @ 300 dpi FUNAI printhead: Max 40m/min @ 300x200 dpi
LENGTH TEMPLATE	Maximum length of template up to 2000mm
MENU LANGUAGES	English (default), German, Vietnamese, Chinese, Korean, Russian, Turkish, Portuguese, Spanish, Polish, Greek, Italian & many others
PRINTABILITY	Text, Counter, Box/Lot, Datetime, Expiry Date, Julian Date, Shiftcode, Image Database (TXT,CSV, SQL,PDF,JSON [PC software]) Barcodes (Code 11, Code 39, Code 128, EAN, QR, Datamatrix, GS1 Datamatrix, ect.) Dynamic Real-Time Printing (Print Online Data)
PRINT HEADS	Connects up to 4 same or different printheads
MEMORY	Store up to 100000 messages on the printer’s memory
INK MANAGEMENT	Automatic recognition ink type and ink parameters Nozzle warming, auto-jet and self-cleaning capabilities to extend cartridge lifetime Nozzle status checking Variety of TIJ 2.5, 1-Onch, FUNAI inks type and colors available
ADVANCE	Free design in template up to 1-Inch (12.7mm, 13.5mm, 25.4mm) Integrate with other devices (PLC, Camera, Check-weigher, ect.) via
RS485, NETWORK	Real-time Printing
USB	Data upload, Backup & Recovery via USB

Applications

Through our inkjet printing system, you can improve production efficiency.
It can printing such as Text , timedate , Variable data , serial number , graphics logos , bar code , QR Code and more …
