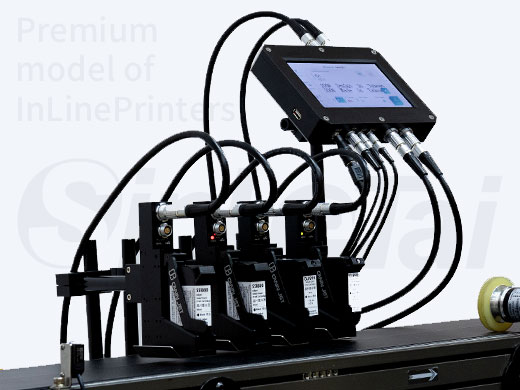

7" Touch Screen Controller With 2 Print Heads (Supports Connecting up to 2 PIJ 7” printheads)
With High-speed PIJ Print Head for quality printing
Designed with easy usability, versatile installation and, setup, can be applied in these industries: Food, FMCG, Pharma, Cosmetics, Beverages, Breweries & Distilleries, Extrusion pipes & cables, Wood/Laminates, Electronics and Agriculture/Aquaculture.
High resolution, High-Speed Applications, Big Printing Size & Range
7" Inch Screen
PIJ 7” printhead: 180 dpi @ Print Speed up to 240m/min
Connects up to 2 printheads; PIJ Inks

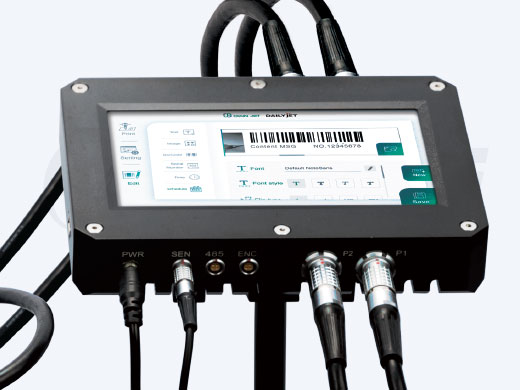

User friendly 7” touchscreen color display with WYSIWYG graphical interface
Sleek & streamlined for easy integration with 3rd party products
Variable database function to meet the requirements in all kinds of applications
Wide selection of PIJ Aqueous, Solvents, Oils, UV inks
| RESOLUTION | Max 180 dpi |
| PRINT SPEED | Max 240m/min @ 180dpi |
| LENGTH TEMPLATE | Maximum length of template up to 11000mm |
| MENU LANGUAGES | English (default), German, Vietnamese, Chinese, Korean, Russian, Turkish, Portuguese, Spanish, Polish, Greek, Italian & many others |
| PRINTABILITY |
Text, Counter, Box/Lot, Datetime, Expiry Date, Julian Date, Shiftcode, Image Database (TXT,CSV, SQL,PDF,JSON [PC software]) Barcodes (Code 11, Code 39, Code 128, EAN, QR, Datamatrix, GS1 Datamatrix, ect.) Dynamic Real-Time Printing (Print Online Data) |
| PRINT HEADS | Connects up to 2 PIJ printheads |
| MEMORY | Store up to 100000 messages on the printer’s memory |
| INK MANAGEMENT |
Automatic recognition ink type and ink parameters Nozzle warming, auto-jet and self-cleaning capabilities to extend cartridge lifetime Nozzle status checking Variety of PIJ inks type and colors available |
| ADVANCE |
Free design in template up to 7-Inch (177.8mm) Integrate with other devices (PLC, Camera, Check-weigher, ect.) via |
| RS485, NETWORK | Real-time Printing |
| USB | Data upload, Backup & Recovery via USB |
Through our inkjet printing system, you can improve production efficiency.
It can printing such as Text , timedate , Variable data , serial number , graphics logos , bar code , QR Code and more …
